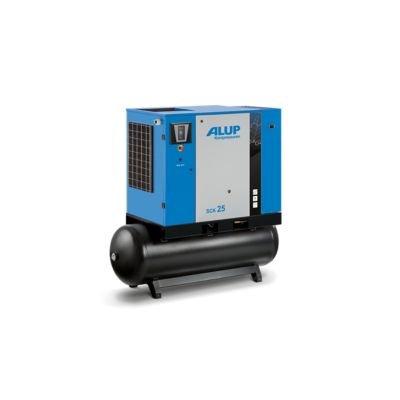

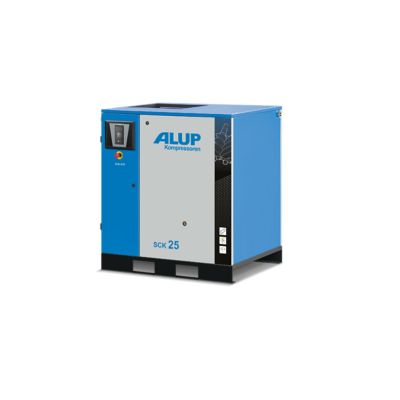

Fixed speed Screw compressor

SCK 25-40

The SCK 25-40 range brings together reliability and efficiency in a compact package, perfect for a wide variety of applications. Designed with the user in mind, these compressors are easy to maintain and operate. Take a closer look to see how the SCK 25-40 can support your business needs.

EFFICIENT

Energy use minimised

The SCK 25-40 range minimises energy use with advanced motors and efficient compressor elements, helping businesses lower operational costs.

easy maintenance

Reduced downtime

With easy access to all components and an external oil-level sight glass, the series makes maintenance straightforward, reducing downtime and service costs.

FREE AIR DELIVERY

Up to 260 m³/h

Delivering up to 260 m³/h at 8 bar, the range ensures a steady supply of compressed air to keep your operations running smoothly.

PRODUCT OVERVIEW

The reliable choice for your air compression needs

The SCK 25-40 range offers a reliable and practical option for industrial purposes. This range also has a power option of 18.5 to 30 kW and bar pressure settings of 8, 10 and 13. It has Free Air Delivery of 260 m³/h at most to ensure that the operations are free-flowing. So, choosing this range will definitely enhance performance.



ALUP's SCK 25-40 range offers also energy and maintenance costs that are easy to deal with and excellent performance. While our series is known for energy and maintenance costs that are quite cheap, it also guarantees an excellent performance throughout. With built in dryer and receiver attachments, the models are easy to install as well. Floor-operating compressors can also be used. Because of their compact size, they are simple to work with and require little assistance.

Alup SCK 25

Advanced Screw Compressor Element Technology

This technology is crucial in reliability and efficiency since it uses precision-engineered rotors that can minimise internal losses while maximising air output. The compression is optimal, and energy consumption is, therefore, reduced.

Innovating the Future of Compressed Air

Leading the industry with advanced technology, meeting the highest standards of efficiency and reliability.



Don't wait any longer to embrace innovation..

Digital transformation conceptual for next generation technology era

FULL OF FEATURES

High-efficiency air filtration, oil separation and User-friendly control panel

High-efficiency air filtration and Oil separation The SCK 25-40 compressors feature advanced filtration and oil separation systems, ensuring clean air intake and less than 3 ppm of oil carry-over, boosting reliability and air quality.



User-friendly control panel - With the Air Control 5.0 system, these compressors offer a simple interface for easy operation, service scheduling, and fault management, keeping performance at its best.

Alup SCK 25

Why Choose the SCK 25 -40?

So, if you’re searching for reliable and efficient performance, the SCK 25-40 range has you covered. Indeed, thanks to power options from 18.5 to 30 kW and flexible pressure settings, it is able to fit seamlessly into your workspace. Furthermore, advanced screw technology ensures high-quality air while keeping energy use low and easy maintenance access means less downtime for your operations.

In a nutshell : for a compressor that is dependable, cost-effective and ready to support your business, our SCK range stands out as the clear choice.

MORE FEATURES

Infologic 2 Connect and Accessible design

Built-In Connectivity for Remote MonitoringInfologic2 Connect enables remote monitoring and control, with real-time warnings, remote start/stop and over-the-air updates.

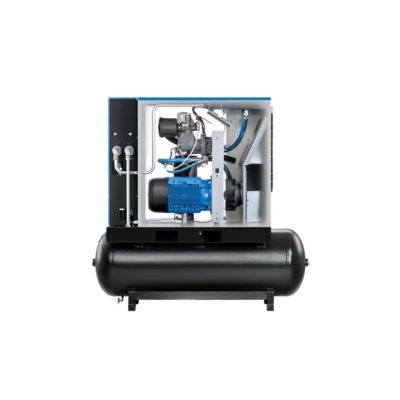

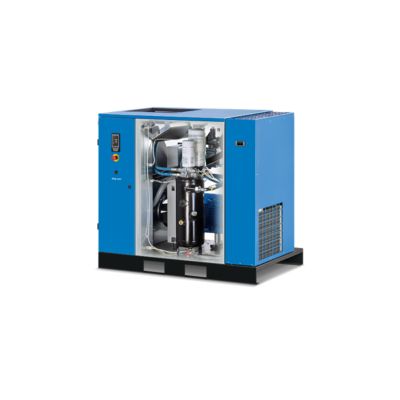

Compact and Accessible Design -  The SCK 25-40 units have all service components at the front and a compact footprint, fitting neatly into various workspaces.

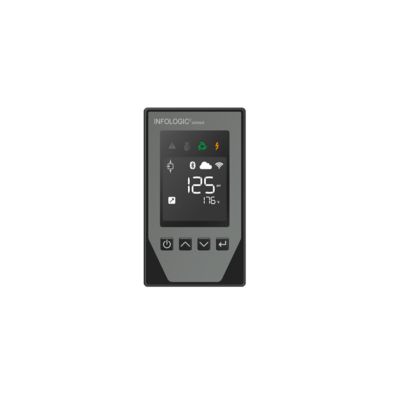

ALUP Nano Infologic 2 connect controller


  • Advanced Screw Compressor Element
    This technology is integral to the compressor, providing efficient air compression with high reliability and reduced energy use.

  • High-Efficiency Air Filtration and Oil Separation
    This built-in system ensures that only clean air enters the compressor and maintains low oil carry-over, crucial for maintaining air quality and machine reliability.

  • User-Friendly Air Control 5.0 Panel
    The standard control panel on the SCK 20-40 compressors offers straightforward operational control, monitoring, and service management.

  • Compact and Accessible Design
    The compact design allows easy access to all service components, ensuring straightforward maintenance and servicing.

  • Efficient Cooling System
    This range includes a built-in efficient cooling system that helps maintain optimal operating temperatures, enhancing the longevity and performance of the compressor while reducing the risk of overheating in demanding conditions.


  • Integrated Refrigerant Dryer
    This integrated dryer ensures the delivery of dry and clean air, making it ideal for applications where moisture control is critical.

  • Pre-Filter
    An optional pre-filter can be added to further enhance air quality by removing additional dust and particles, providing cleaner air for sensitive applications.

  • Food Grade Oil
    For industries with specific requirements, the option to use food-grade oil ensures compliance with stringent hygiene standards, particularly in food and beverage applications.

  • Air Receiver Configuration
    The SCK 20-40 compressors can be mounted on air receivers of various sizes, including 500L, to meet specific storage and space requirements.

  • Air Control 5.1 Upgrade
    For enhanced control capabilities, the Air Control 5.1 is an optional upgrade offering advanced functionalities such as dual pressure band time scheduling and data logging for more precise and energy-efficient operations.

Get in touch today!

Selecting the right screw compressor for your operation can be challenging. Our experts are ready to assist you in finding the perfect solution to meet your specific needs. Contact us today for tailored advice.

Technical data

INSTALLED POWER

18.5-30

These compressors feature motor power from 18.5 to 30 kW, ensuring they can handle a wide range of industrial applications with ease.

noise level

67

These compressors operate between 67 and 71 dB(A), making them suitable for environments where maintaining lower noise levels is beneficial, like workshops or near work areas.

PRESSURE

13

Available in 8, 10, and 13 bar options, this range allows you to choose the right pressure level for your specific needs.

Model Power (kW) Max Pressure (bar) Free Air Delivery (m³/h) Noise Level (dB(A))
SCK 25 18.5 8 / 10 / 13 188 / 162 / 139 69
SCK 30 22 8 / 10 / 13 223 / 193 / 167 70
SCK 40 30 8 / 10 / 13 260 / 234 / 206 71

For full technical specification and more information refer to product brochure

SCK 25-40

SCK 25-40

Full product range

Filename
Alup_SCK_20-40_Sales_Leaflet_EN_Brendola_6999640462.pdf
Size
5 MB
Format
pdf
Download

Contact us!

Want more advice on screw compressors, or need help selecting the right screw compressor setup for your operations? Contact us today for advice that’s customised to fit your operation.
